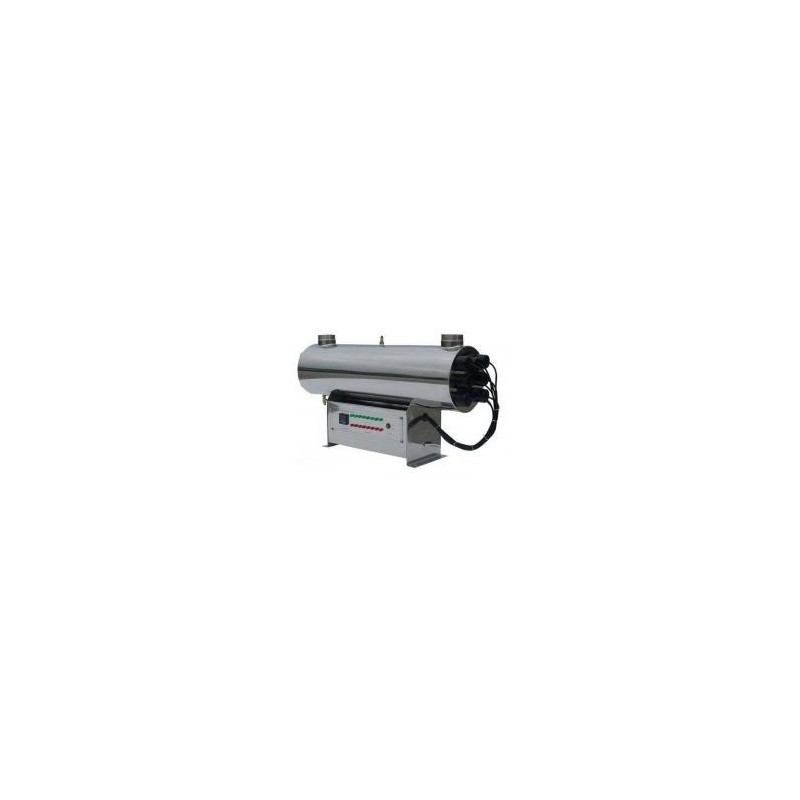

Specifications of Ultraviolet Water purification and sterilization Assembly | |||
Type | UV-440W | ||
Pure water | 21.8t/h 96GPM | ||
Fountain | 17.4t/h 76.8GPM | ||
Lamp rated life (hours) | 8000 | ||
UV dosage (uW-sec/cm2) | >30000 | ||
Electricity 220–240 v – 50HZ Power in Watts | 440W | ||
Lamp failure Warning system Visible | LED | ||
Audible | Alarm | ||
Timer | YES | ||
No. of UV lamp needed | 8 | ||
Overall dimension (mm) | Ø 260*970*540 | ||
Shell material stainless steel | 304# | ||
Inlet/outlet size (inch) | 3”-4” | ||
Type of lamp holder | G13 | ||
Max operating pressure | 8kg | ||
UV lamp | PHILIPS HOLLAND |
